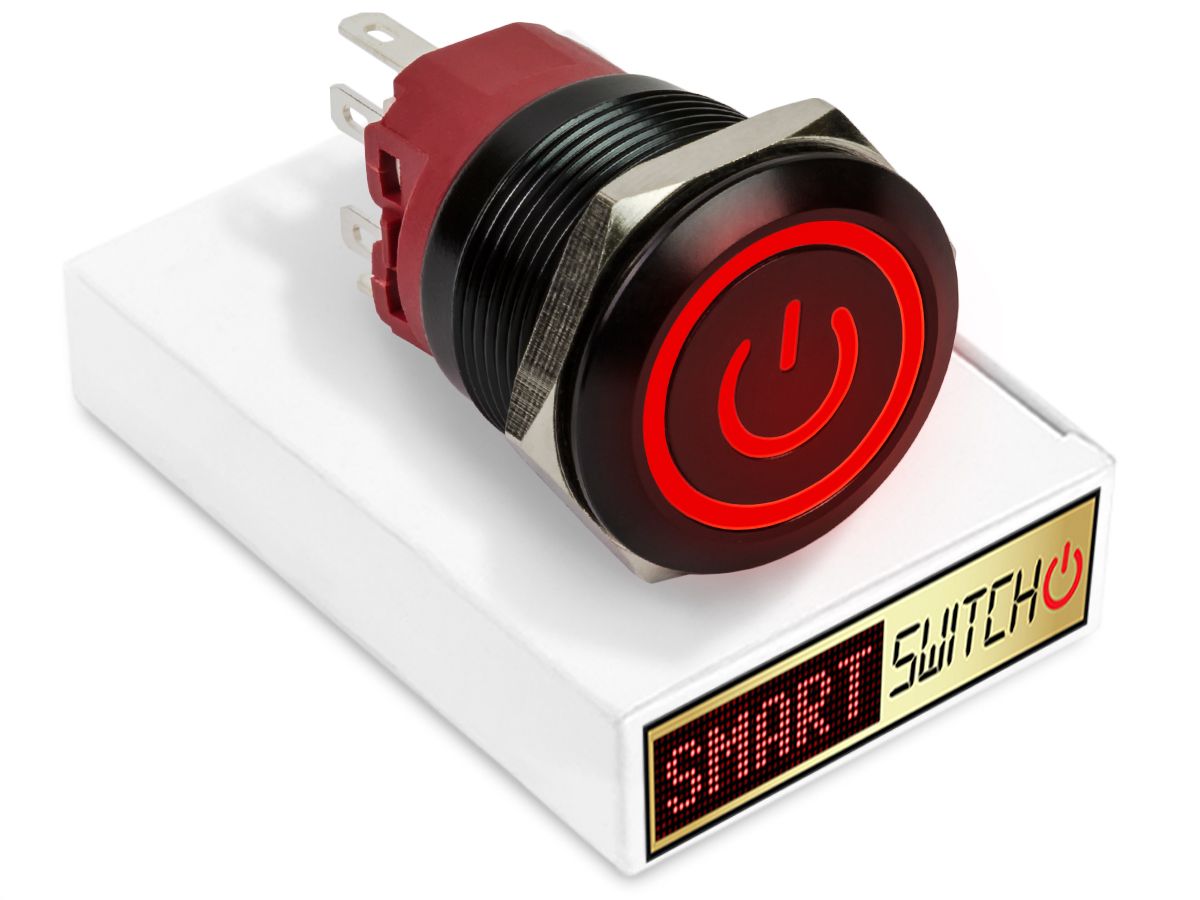

25mm 2NO2NC Black Aluminium ANGEL EYE POWER Momentary LED Switch 12V/3A (22mm Hole) - RED

£8.99 £7.49
8 In Stock
SKU
SWT/P25-114_X
-
VAT/Tax is payable for goods shipped to UK addresses only.
For shipments outside the UK, the VAT will not be charged at checkout

The SmartSwitch® Angel Eye® Power push button switch is a high quality panel mounted switch made of Black Aluminium with an integrated LED available in a selection of LED colours. Features a Momentary switch mechanism to toggle on / off contacts with silver contacts, providing high strength and a high tolerance to temperature in a lightweight module, ensuring longevity and reliability. The LED can be wired independantly or inline with the switch operation depending on requirements.

IP67 rated for a high standard of waterproofing and IK10 for high impact protection. The switches are also tamper proof and cannot be removed without access to the rear once fixed.

The double pole double throw (DPDT / 2NO2NC ) switches come with 2 inputs and 4 outputs allowing you to control upto 2 different devices with 2 operational modes.

The switches can be wired or soldered directly in to your existing wires or quick-fit snap on fly leads can be supplied for easy installation and removal.

  • Face Diametre: 25mm
  • Fits Hole Size: 22mm
  • Fits Panel Thickness: 1mm to 18mm
  • Contact type: 2NO2NC
  • Rated Voltages (DC): 6V/12V/24V
More Information
SKU SWT/P25-114_X
Manufacturer SmartSwitch
Product Type Electronic Switch
Colour Red
Switch Mechanism Momentary
Body Colour Black
