FAQ
What Sort of Fly-Lead Connector Do I Need?
Please check the back of your switch and use the reference tables below (the colour of the plastic is not important, the pin-layout is).
SPST Angel Eye/Devil Eye Switches
Switch Size / SKU | Switch Pin Layout | Required Fly-Lead | Fly-Lead SKU / Description |
---|---|---|---|
19mm Face / 16mm Barrel T19-XXX |
![]() |
![]() |
A032 - 19mm (15cm length) Fly-Lead (Type 2) A033 - 19mm (50cm length) Fly-Lead (Type 2) |
22mm Face / 19mm Barrel T22-XXX |
![]() |
![]() |
A034 - 22mm (15cm length) Fly-Lead (Type 2) A035 - 22mm (50cm length) Fly-Lead (Type 2) |
19mm Face / 16mm Barrel | ![]() |
![]() |
A008 - 19mm Fly-Lead (Type 1) |
22mm Face / 19mm Barrel | ![]() |
![]() |
A020 - 22mm Fly-Lead (Type 1) |
DPDT Angel Eye/Devil Eye Switches
Switch Size / SKU | Switch Pin Layout | Required Fly-Lead | Fly-Lead SKU / Description |
---|---|---|---|
22mm Face / 19mm Barrel P22-XXX |
![]() |
![]() |
A036 - 22mm (15cm length) Fly-Lead A037 - 22mm (50cm length) Fly-Lead |
25mm Face / 22mm Barrel P25-XXX |
![]() |
![]() |
A038 - 25/28mm (15cm length) Fly-Lead A039 - 25/28mm (50cm length) Fly-Lead |
28mm Face / 25mm Barrel P28-XXX |
![]() |
![]() |
A038 - 25/28mm (15cm length) Fly-Lead A039 - 25/28mm (50cm length) Fly-Lead |
Wiring
Angel Eye/Devil Eye Switches

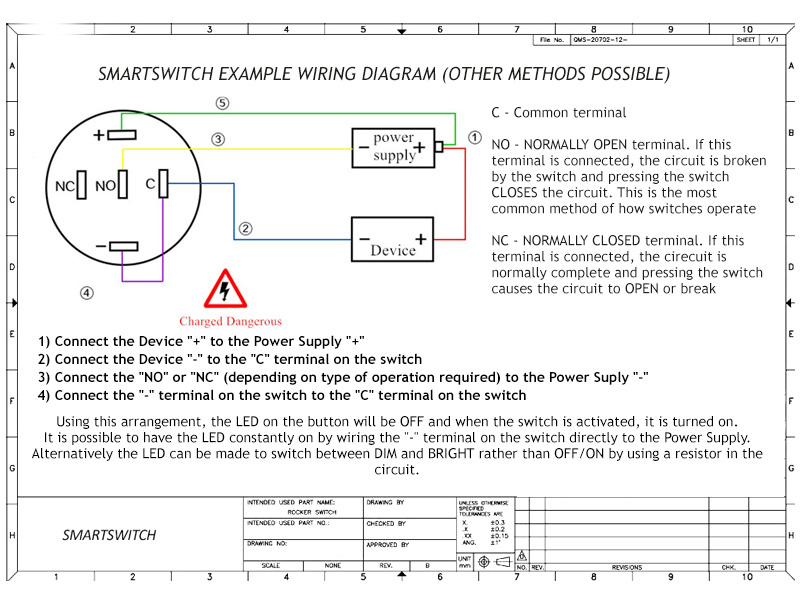

Our switches are designed to be used in a flexible manner, and the operation will be dependant on the wiring. For example, the switches may be wired to be lit constantly or unlit but then the LED to come on when the switch is pressed, or the inverse. An example of wiring is shown here.
